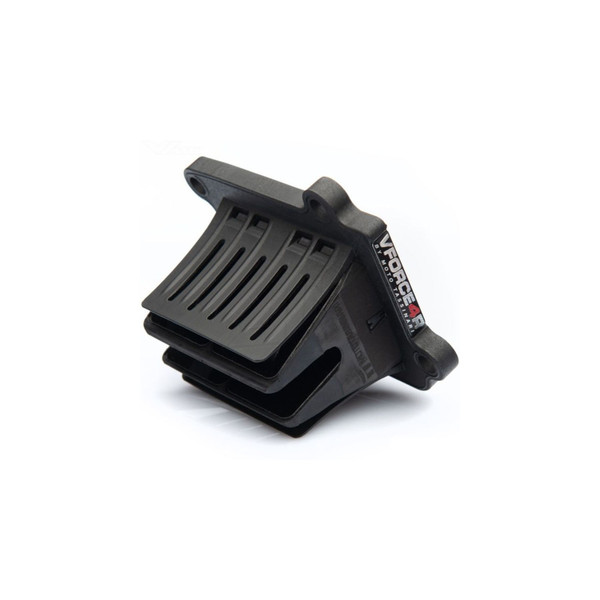

V-Force (VF4R) CR125 87-02

Applications: Honda CR125
Model Years: 1987-2000 and 2002

The all-new VForce4R for the Honda CR125 offers enhanced reed petal life as well as all the added benefits of the unique VForce reed valve design.

STANDARD VFORCE REED VALVE FEATURES

• Double the reed tip surface over a conventional reed valve design
• Increased bottom end, stronger mid-range and longer top-end
• Greater efficiency due to reduced reed petal travel
• More airflow means more horsepower
• Reduced reed petal wear
• Screw free design eliminates risk of screws going through motor
• Screw free design enables rapid reed petal changes

IMPROVED VFORCE4 FEATURES

• All-new reed petal resin system, carbon fibre and lay-up
• Pre-curved reed petal ensures better seal at tip
• Wider reed cage for maximum airflow
• Combined reed tip area increased by 10.5% resulting in increased total air flow
• Airfoil shape added to cage tip to increase air velocity from outer ports
• Long reed stops added to progressively slow petal tip velocity, for increased petal durability
• Reduced frontal area of central wing by 15.6% combined with a more aerodynamic shape

ALL-NEW VFORCE4R FEATURES

• Rubber overmodling on reed tip surface of cage to further enhance petal life
• Pre-curved reed petal ensures better seal at tip

WHAT'S INCLUDED WHEN I PURCHASE THE VFORCE4R REED VALVE SYSTEM?

Moto Tassinari and VForce4R decals, detailed installation instructions, complete VForce4R reed valve system (including reed petals) and gaskets.
